Welded flow nozzle: the nozzle butt-welded between two pipe pieces, bevelled weld ends, two wall pressure tappings, no flanges
Welded flow nozzle: the nozzle butt-welded between two pipe pieces, bevelled weld ends, two wall pressure tappings, no flanges

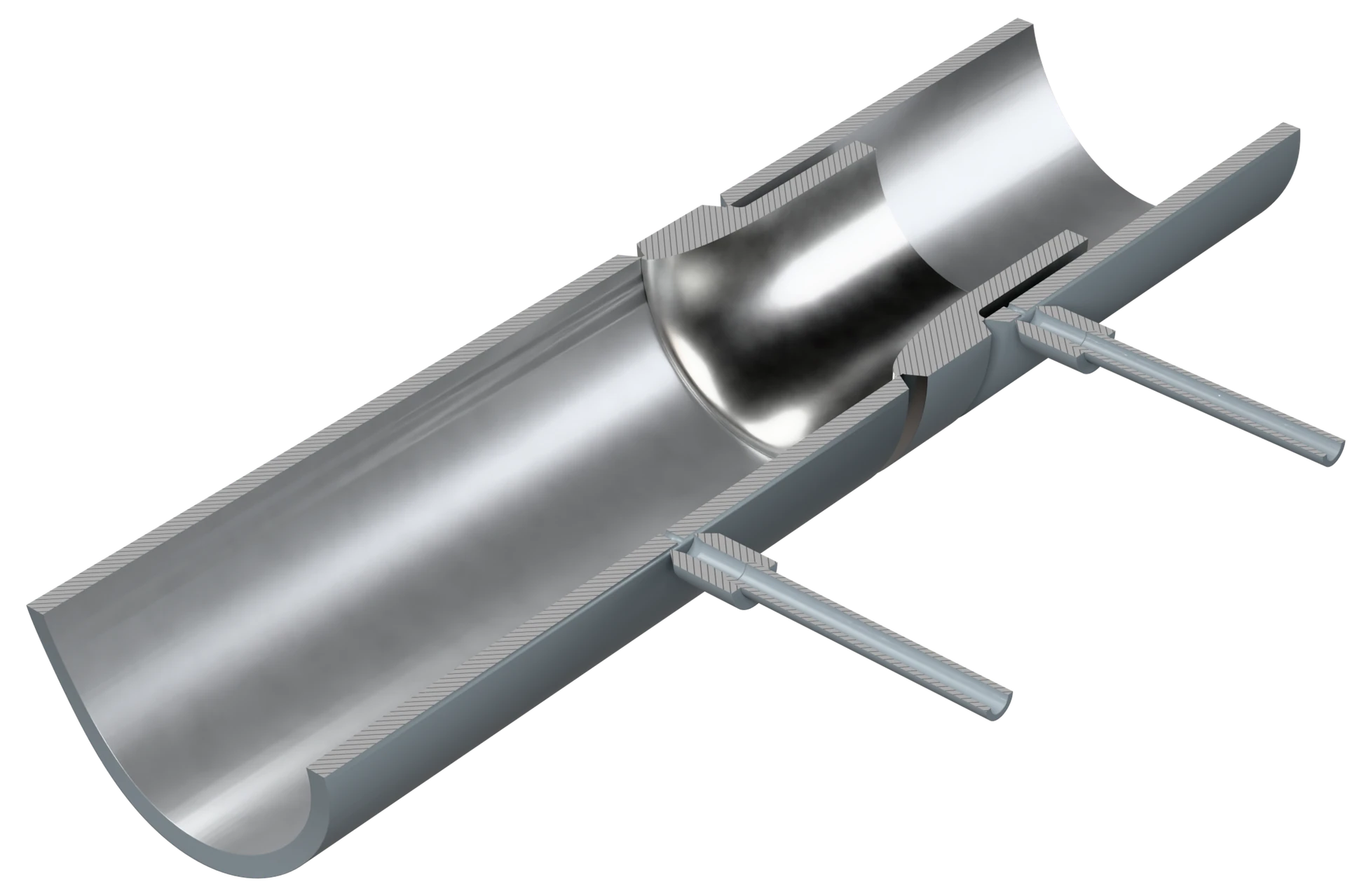

Welded flow nozzle in half section: converging inlet and cylindrical throat inside the pipe, no flange in the line

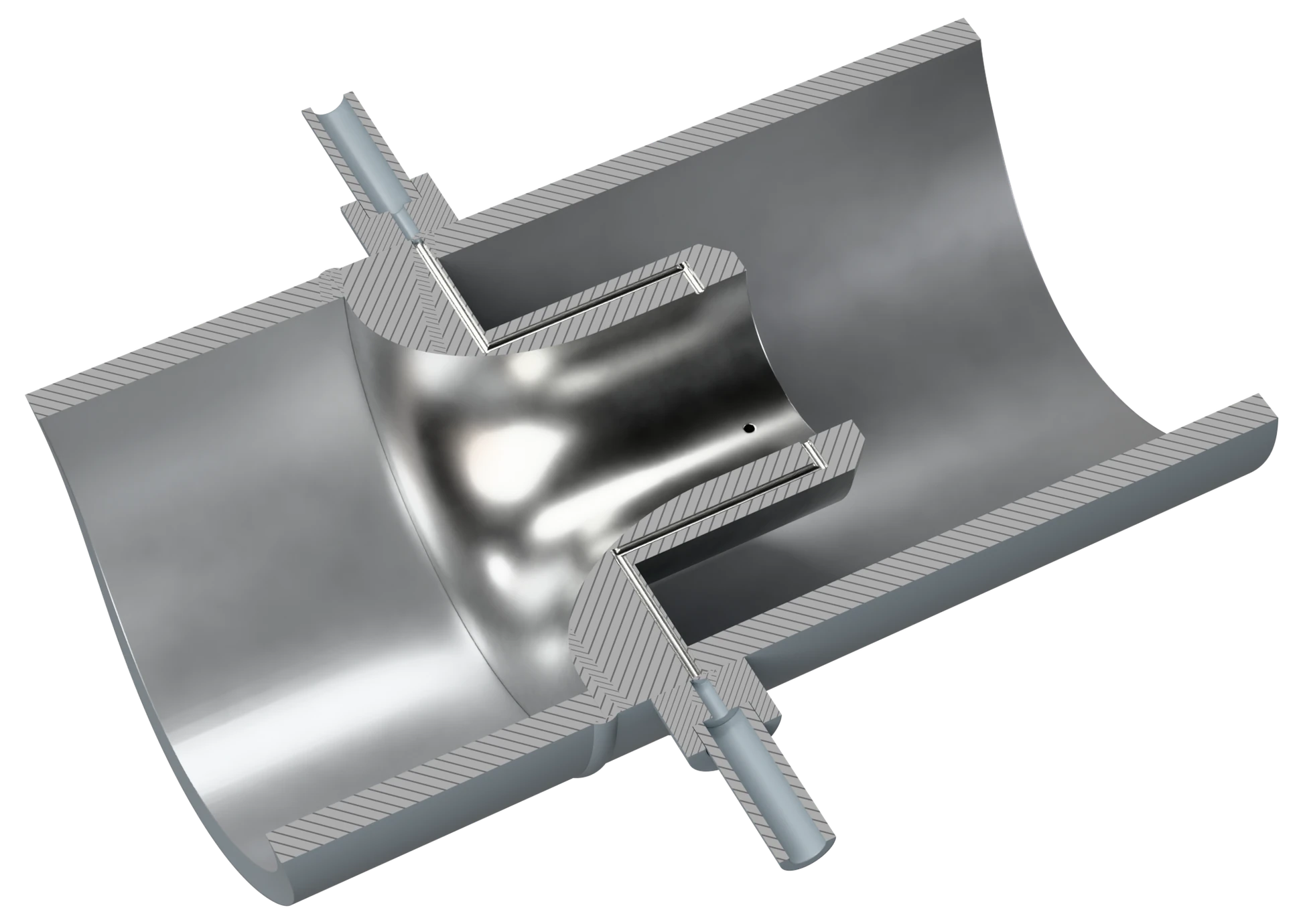

Welded nozzle, close section at the throat: the nozzle is butt-welded between two pipes with no flanges; the downstream pressure is taken through the throat wall and led out through the nozzle body
Venturi Tubes and Flow Nozzles

Welded Nozzle

A nozzle element welded straight into the line instead of held between flanges: no flange pair and no gasket joints at the measurement point. The profile, ISA-1932 or long radius, is chosen as for a flanged nozzle.

Size rangeNPS 2″ – 24″
Pressure classBy pressure design
StandardsISO 5167-3 · ASME MFC-3M
Beta range0.20 – 0.80
Request a quote PDF Download datasheet
Design

Welded straight into the line, no flanges

Welded flow nozzles need no flanges, gaskets or bolts at the line joint. The nozzle is butt welded into the pipeline as an inline component, so the installed length is the measuring section itself. A flanged spool is available where the line calls for one.

The design also removes the gasket from the joint, so there is no gasketed joint to leak. The measuring section becomes part of the pipe rather than an assembly bolted into it.

Advantages

No flanges or fasteners Welded in as an inline component, so there are no flanges, gaskets, bolts or nuts to buy, torque or replace.
Leakage free No gasket in the joint means no gasket to fail.
Weld ends to the pipe The weld preparation is cut to the actual pipe wall, so the joint matches the line it goes into.
Accessories welded on Tapping pipes, shut-off valves and condensate chambers can be welded on in the workshop.
Specification

Technical data

Size range NPS 2″ – 24″ (DN 50 – DN 600)
Pressure class Butt weld ends: by pressure design to ASME B31.1, B31.3 or EN 13480-3; flanged spool on request: ASME Class 150 – 2500 / EN 1092-1 PN 6 – PN 400
Standards ISO 5167-3, ASME MFC-3M
Profiles ISA-1932 or long radius (high and low ratio)
Beta ratio 0.20 – 0.80 depending on profile
Construction Butt welded into the line between pipe sections (ASME B16.25 ends); flanged spool on request
Tappings ISA-1932: corner; long radius: pipe wall, 1D upstream and 0.5D downstream; throat tap: throat wall, to ASME PTC 6
Measuring uncertainty Stated on the calculation sheet for the duty; discharge coefficient uncertainty to ISO 5167-3 (ISA-1932 0.8 – 1.2 %, long radius 2.0 %)
Permanent pressure loss About 84 % of the differential at β 0.30, 61 % at 0.50, 25 % at 0.80 (ISO 5167-3, ISA-1932); lower than an orifice plate at the same β
Installation thickness Set per design within the ISO 5167-3 limits (ISA-1932 H ≤ 0.1D; long radius 3 mm ≤ H ≤ 0.15D) and by the weld preparation
Marking Tag and serial number, size, design pressure and temperature (rating for a flanged spool), throat diameter, β, materials and flow direction; marking method to the project
Quality control ISO 9001 system; PED where it applies; qualified welding procedures and NDE; EN 10204 3.1 certificates, 3.2 on request
Documentation Sizing calculation, profile inspection report, material certificate (EN 10204 3.1)
Materials

Material selection

Two rules set the specification. The nozzle is chosen for wear and corrosion resistance; the spool is matched to the line pipe so the weld and the thermal expansion behave as one.

Nozzle & throat316 / 316L, 304 / 304L stainless steelWear resistant and the default for water, steam and clean gas. Where the throat has to expand with the pipe, it is cut from an alloy compatible with the line material instead.
Spool & bodyMatched to the line — A106 Gr B carbon, A335 P11 / P22 alloy, A312 TP316L stainless; P235GH, 16Mo3Specified from the piping class so the site weld is a like-for-like joint and needs no transition piece.
High temperature serviceA182 F11, F22, F91 / F92, 347HCreep resistant grades for main steam, reheat and superheater outlet lines.
Corrosion resistant upgradeDuplex (UNS S31803 / S32205), super duplex (UNS S32750), Alloy C-276 (UNS N10276), Alloy 625 (UNS N06625), Alloy 400 (UNS N04400)Applied to the nozzle alone, or to the complete body where chloride or acidic service governs the selection.

Where it runs

Sectors this family is specified into most often.

Thermal power Main steam Feedwater Refining Petrochemical Compressed air & gas
Ordering data

What to send for sizing

A welded nozzle is cut to the pipe it goes into. The weld preparation follows the actual wall thickness, not the nominal, so the pipe data has to come with the enquiry.

The nozzle profile is chosen the same way as a flanged one — ISA-1932 or long radius, against the standard the project is specified to.

Sizing enquiry sheet →
Process data What it decides
Line size, schedule and material Sets the weld preparation and the matching pipe grade
Pipe wall thickness The weld prep is cut to the actual wall, not the nominal
Nozzle profile required ISA-1932 or long radius
Medium, flow range, pressure and temperature Sets the throat diameter d
Tapping interface required Plain, butt weld, threaded, flanged, compact per IEC 61518 or compression fitting
Welding procedure and NDT scope WPS, PQR and the examination the project requires
Face-to-face length available Sets the spool the nozzle is delivered in

Documents

PDF Venturi tubes and flow nozzles datasheet EN · 5 pages → PDF White paper 02 — The Meter That Bills You EN · 5 pages → XLS Sizing enquiry sheet Fill in and send back →
Specification text For tender documents and instrument data sheets. Fill in the values in brackets; the text names no manufacturer.
  1. Primary element: [ISA-1932 / long radius] nozzle butt welded into the line (ASME B16.25 ends), line size [NPS …]; design pressure and temperature to [ASME B31.1 / ASME B31.3 / EN 13480-3].
  2. Design: ISO 5167-3 / ASME MFC-3M.
  3. Tappings: ISA-1932 corner tappings; long radius pipe wall tappings 1D upstream and 0.5D downstream.
  4. Materials: [ … ], to suit the process and the line piping class.
  5. Marking: tag and serial number, size, design pressure and temperature, throat diameter, β, materials and flow direction.
  6. Fabrication and documents: qualified welding procedures and NDE; sizing calculation, profile inspection report, material certificate EN 10204 3.1 (3.2 where stated).
